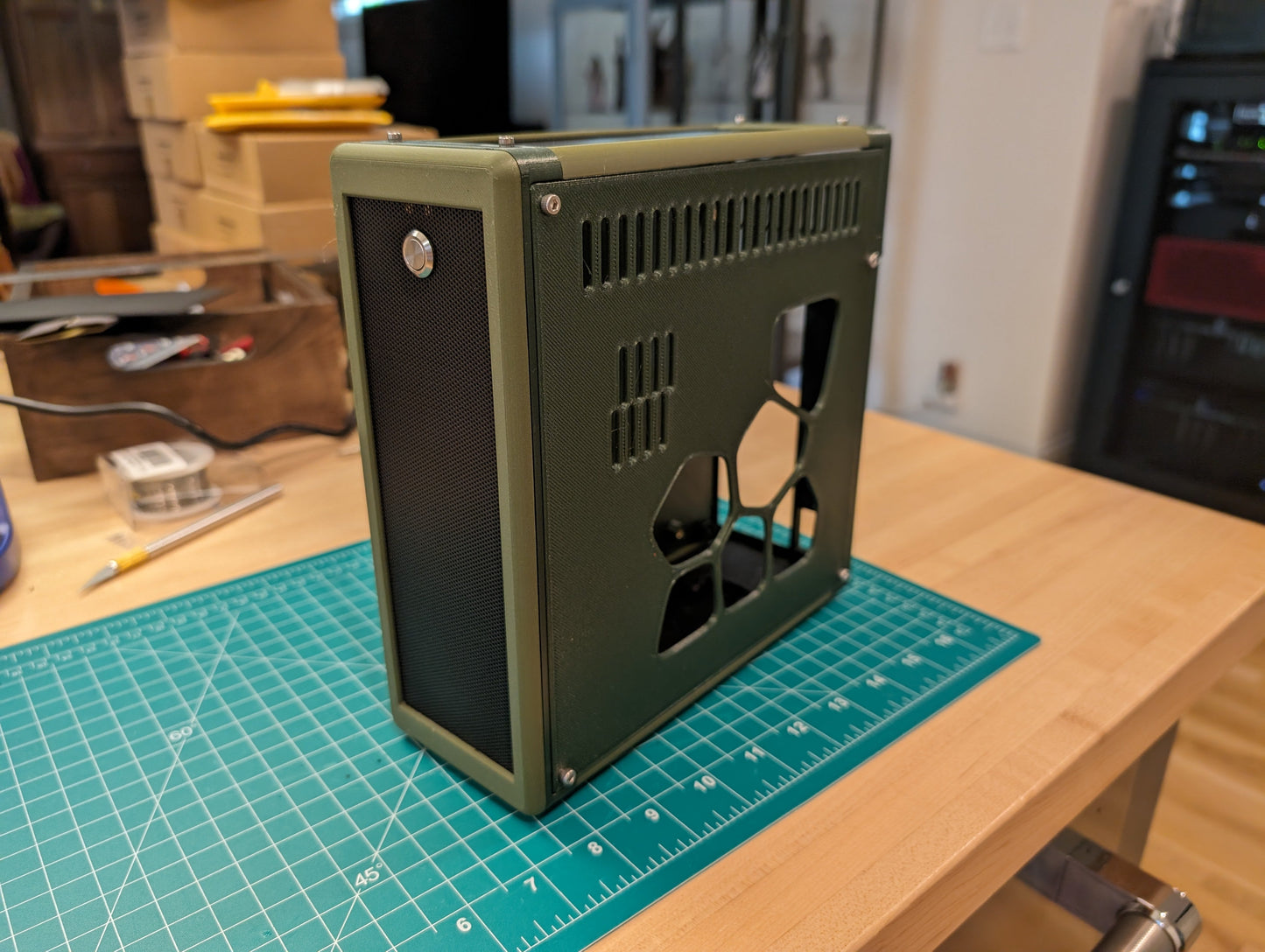

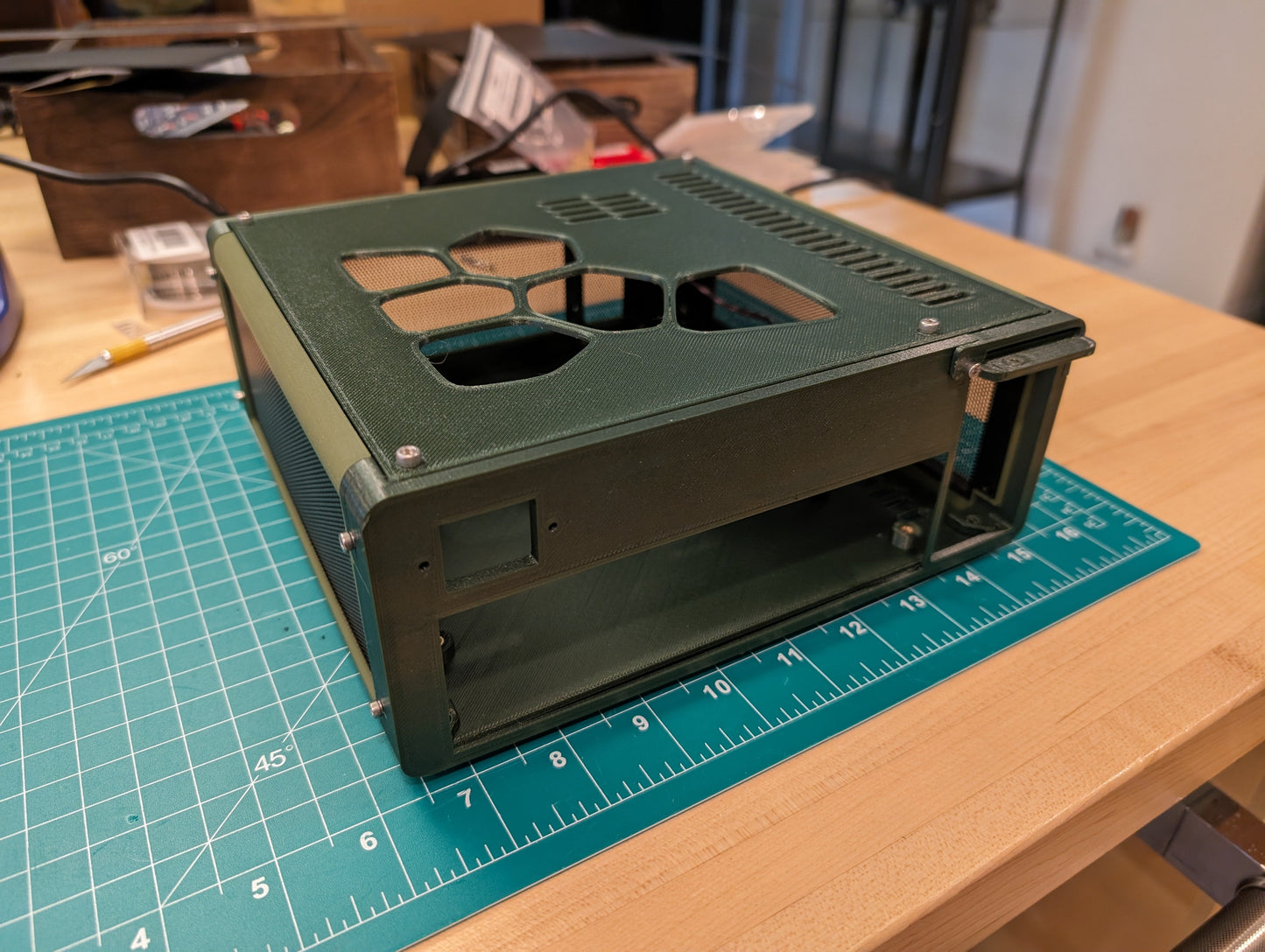

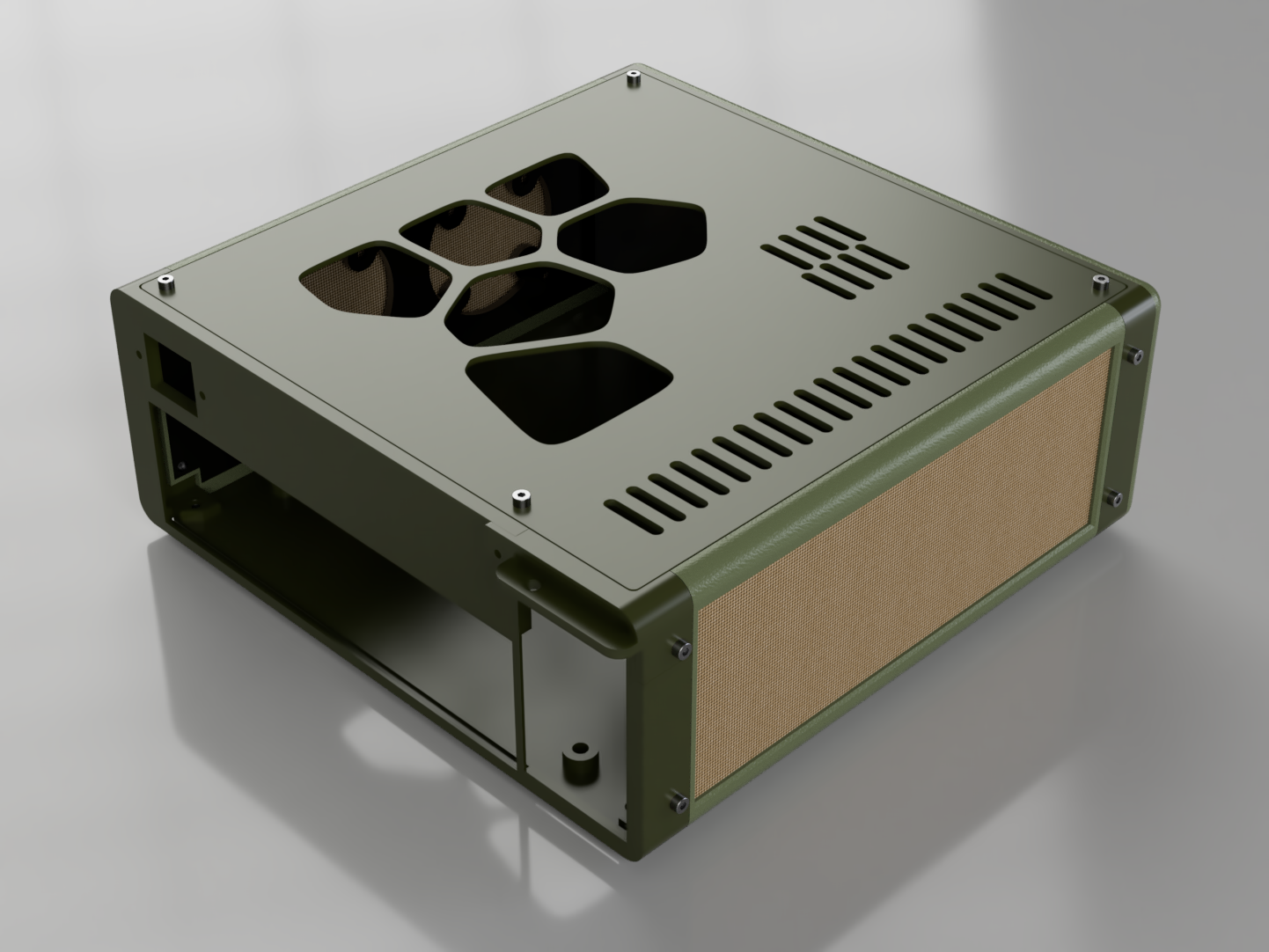

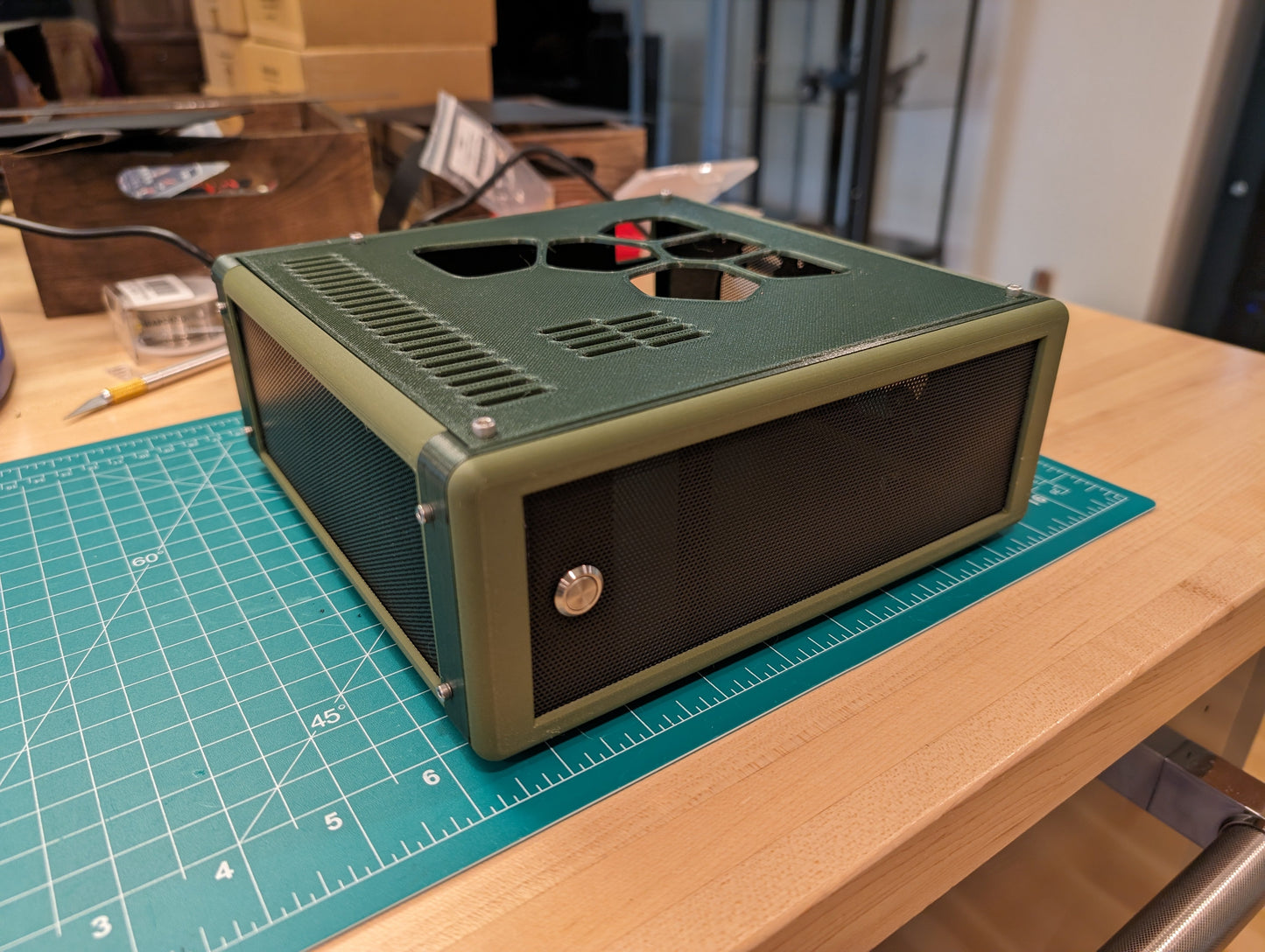

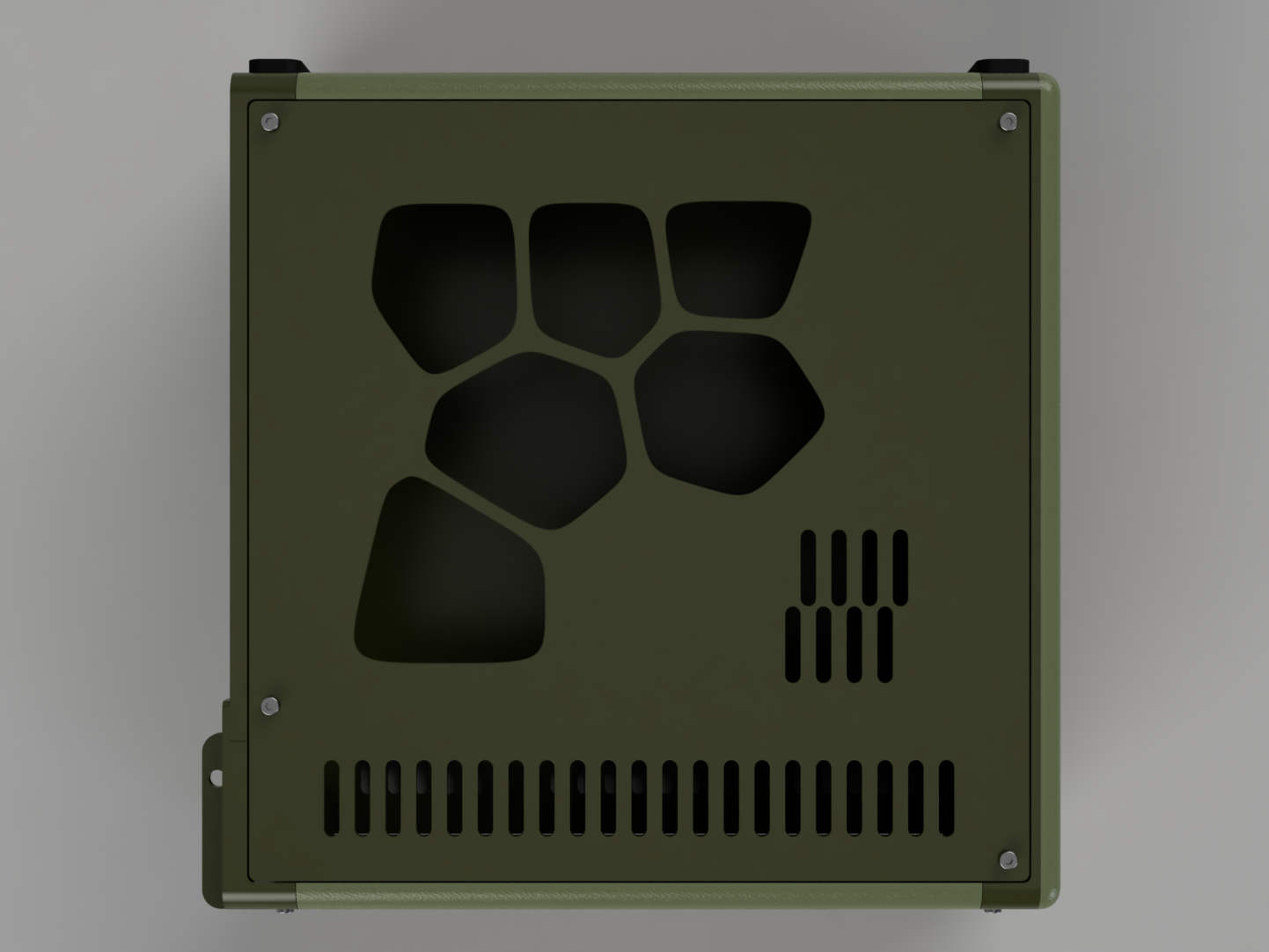

Print your own Catapult.LP4 case using the STEP or STL files in this package.
3D Printer Requirements
Requires a 3D Printer that can print up to 220mm.
The case has been tested using PETG and ABS filaments for the necessary heat resistance characteristics. It is recommended to not print the struts or top panel using PLA, as the parts are likely to warp. Panel segments have an inner core we recommend printing in a heat-resistant filament such as PETG or ABS, which should allow for the outer plate to be any material you wish, including PLA.
It is intended to install M2.5 and M3.0 heat-insert threads that are no deeper than 4mm. Templates are included to cut out mesh for the front and side panels of your own choice.
Using the official Catapult.LP4 assets, the final product will support:
4.0 liters (220mm x 217mm x 84mm)
CPU Cooler: Max height approx 65mm
GPU: Designed for Low Profile GPUs like the Gigabyte RTX 4060 Low Profile
Riser cable: Not required
PSU: Designed for HDPLEX 250W GaN AIO ATX Power Supply
