CatapultCase

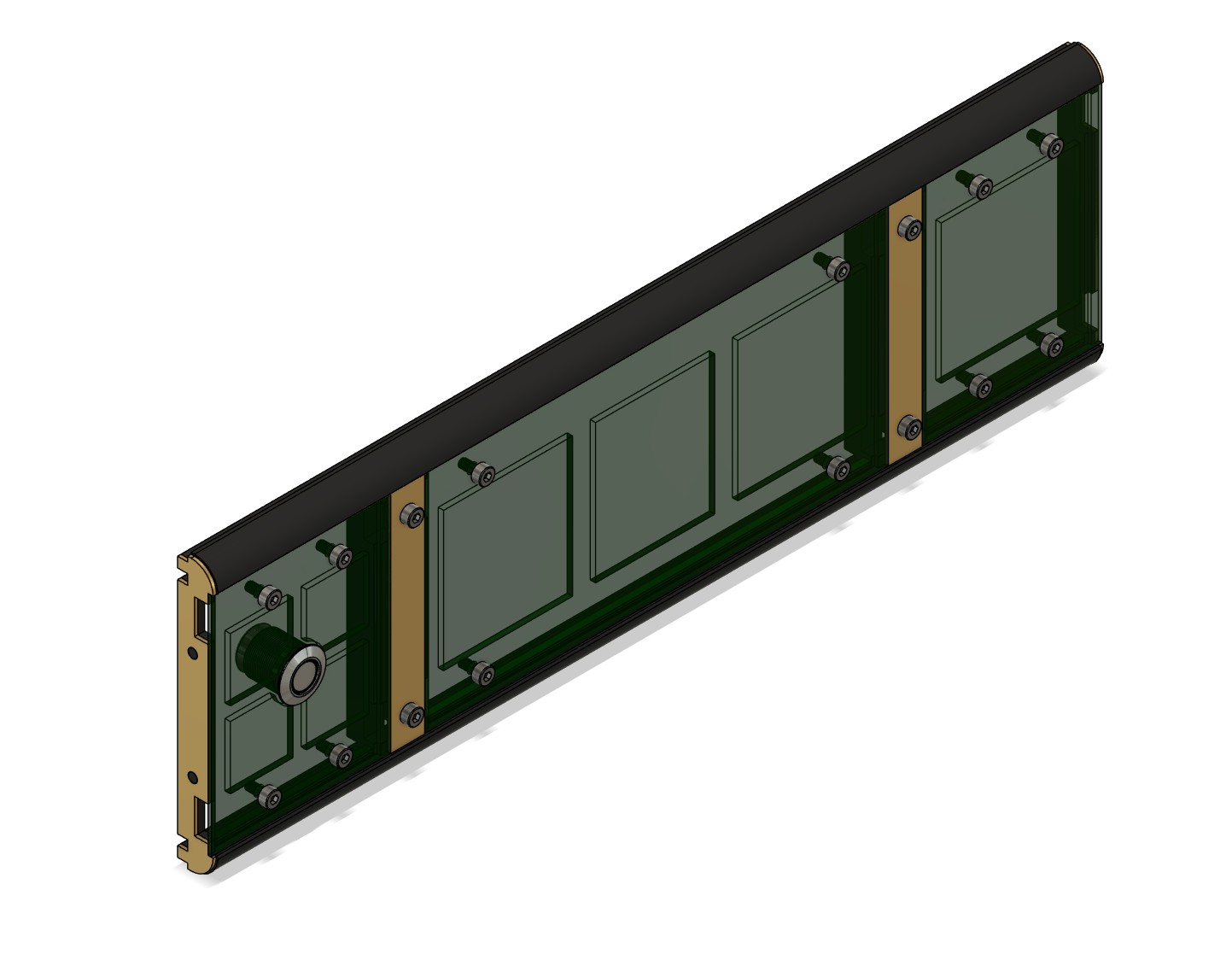

263mm Full Cover Panel

263mm Full Cover Panel

Regular price $0.00 USD
Regular price Sale price $0.00 USD
Sale Sold out
The 3D Print file manifest is as follows (STEP and STL versions of each):

Frames:
  • 263mm_Frame
  • 263mm_Frame_Snubbed

Components:

  • 10mm_PLASTIC_Solid_Insert_Core
  • 10mm_PLASTIC_Solid_Plate
  • 53mm_PLASTIC_Grill_Full_Insert_Plate
  • 53mm_PLASTIC_Grill_Insert_Core
  • 53mm_PLASTIC_Grill_Plate
  • 53mm_PLASTIC_Power_Button_Centered_Full_Insert_Plate
  • 53mm_PLASTIC_Power_Button_Centered_Insert_Core
  • 53mm_PLASTIC_Power_Button_Centered_Plate
  • 53mm_Translucent_Power_Button_Center_Full_Insert_Plate
  • 53mm_Translucent_Solid_Full_Insert_Plate
  • 137mm_PLASTIC_Grill_Insert_Core
  • 137mm_PLASTIC_Grill_Plate
  • 137mm_PLASTIC_Solid_Full_Insert_Plate
  • 137mm_PLASTIC_Solid_Insert_Core
  • 137mm_PLASTIC_Solid_Plate
  • 137mm_Translucent_Solid_Full_Insert_Plate

CAD:

A Fusion 360 'f3d' CAD file is also included:

  • 263mm_Segment.f3d

The 10mm brass panel shown is available in the store for additional purchase.
